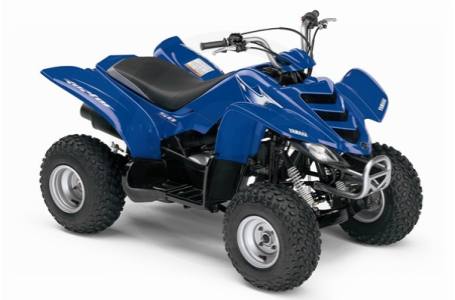

2007 Yamaha Raptor 80

2007 RAPTOR 80

Now until December 31, 2010
$400.00 Off Store Price
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Kids and dirt go together. Electric start, four-stroke power, big Raptor style, the Raptor 80 is guaranteed to make you the most popular parent in the neighborhood for quite some time.

    Key Features
    • 79cc of reliable, electric-start four-stroke fun feed into a three-speed gearbox with automatic clutch, making the Raptor 80 a great choice for those getting started or moving up.
    • Class-exclusive shaft drive is virtually maintenance-free; no messing with chain adjustment and lubrication.
    • Low 25.6-inch seat height for quick, balanced steering and optimal rider comfort.
    • Large, class-leading fuel capacity—1.8 gallons—increases range, which means less fill-ups and more fun out on the trail.
    Engine
    • Feisty 79cc air-cooled, SOHC four-stroke single puts out smooth, reliable power perfectly tuned to the rider starting to hone his or her ATV skills.
    • Adjustable throttle limiter allows a parent or adult supervisor to match the engine’s power output to the rider’s skill level, and an intake restrictor plate can be removed as skill increases.
    • Three-speed transmission with automatic clutch ensures smooth shifting and lets the entry-level rider focus on the trail by eliminating a hand-operated clutch.
    • Rugged muffler with USFS-approved spark arrestor for quiet operation.
    • Automatic cam chain tensioner helps reduce the need for engine maintenance and extends engine life.
    Chassis/Suspension
    • Leading-arm front suspension with 2.3 inches of travel smooths out the trail for a comfortable, confidence-inspiring ride.
    • Rear swingarm and a single rear shock with 2.2 inches of travel further enhance ride comfort and traction.
    • Class-longest wheelbase at 40.6 inches helps accommodate kids 12 and older; roomy ergonomics mean they won’t outgrow this one too quick.
    • 4.0 inches of ground clearance clears all sorts of obstacles.
    • Fully sealed front and rear drum brakes keep out water and debris, providing strong, reliable stopping power.
    • Beefy 18x7-7 front and 18x8-7 rear knobby tires offer excellent traction and help boost ground clearance.
    Additional Features
    • Raptor 700R-style bodywork turns this entry-level machine into one wicked-looking ride.
    • Raptor-style grips add comfort and look cool too.
    • Wide, cushy seat and full-size handlebars provide excellent all-day comfort and minimize fatigue.
    • Rugged, wide fenders with class-exclusive rear mud flaps deliver outstanding mud and splash protection to ensure a dry, comfortable ride.
    • Handlebar-mounted parking brake.
    Engine Specifications
    • Type: 79cc air-cooled, SOHC 4-stroke single
    • Bore x Stroke: 47mm x 45.6mm
    • Compression Ratio: 9.6:1
    • Carburetion: Mikuni 16mm
    • Ignition: CDI
    • Starting System: Electric
    • Transmission: 3-Speed automatic clutch
    • Drive Train: 2WD; Shaft
    Chassis Specifications
    • Suspension/Front: Leading arm, 2.3” travel
    • Suspension/Rear: Swing arm, 2.2” travel
    • Brakes/Front: Dual sealed drum
    • Brakes/Rear: Sealed drum
    • Tires/Front: AT18 x 7-7
    • Tires/Rear: AT18 x 8-7
    Dimensions
    • L x W x H: 59.8” x 32.5" x 37.8"
    • Seat Height: 25.6”
    • Wheelbase: 40.6”
    • Ground Clearance: 4.0”
    • Fuel Capacity: 1.8 Gallons
    • Dry Weight: 242 Lbs.
    Other
    • Lighting: N/A
    • Warranty: 6 Month (Limited Factory Warranty)
    NOTES:

    ATVs with engines of 49cc to 70cc are recommended for use only by riders age 6 years and older, and always with adult supervision. ATVs with engines of 70cc to 90cc are recommended for use only by riders age 12 years and older, and always with adult supervision. • ATVs with engines 90cc or greater are recommended for use only by riders age 16 years and older. • Yamaha recommends that all ATV riders take an approved training course. For safety and training information, see your dealer or call the ATV Safety Institute at 1-800-887-2887. • ATVs can be hazardous to operate. For your safety: Always avoid paved surfaces. Never ride on public roads. Always wear a helmet, eye protection and protective clothing. Never carry passengers. Never engage in stunt riding. Riding and alcohol/drugs don’t mix. Avoid excessive speed. And be particularly careful on difficult terrain. There are few joys in life equal to the free-spirited thrill and experience of ATV riding. And that’s why it’s important for all of us to do our part as responsible riders. By following logical, common-sense rules, we can maintain season after season of unparalleled enjoyment of our sport. • Please remember to “tread lightly.” Always ride in a responsible manner, respecting the environment as well as all state and local laws. Specifications subject to change without notice. All ATVs come with a 6-month Limited Factory Warranty. See your dealer for details.


    Specifications

    Engine
    Engine Type SOHC 4-stroke single
    Displacement 79 cc
    Bore x Stroke 47mm x 45.6mm
    Cylinders 1
    Engine Cooling Air-cooled
    Fuel System Mikuni 16mm
    Starting System Electric
    Chassis
    Front Suspension Leading arm
    Front Travel 2.3 in. travel
    Front Brake Type Dual sealed drum
    Front Tires AT18 x 7-7
    Rear Suspension Swing arm
    Rear Travel 2.2 in. travel
    Rear Brake Type Sealed drum
    Rear Tires AT18 x 8-7
    Dimensions/Capacities
    Dry Weight 242 lbs. (110 kg)
    Fuel Capacity 1.8 gal. (6.8 l)
    Ground Clearance 4.0 in. (100 mm)
    Machine Dimensions (LxWxH) 59.8” (1,519 mm) x 32.5" (826 mm) x 37.8" (960 mm)
    Wheelbase 40.6 in. (1,030 mm)
    Drive Train
    Drive Train 2WD; Shaft
    Transmission 3-Speed automatic clutch
    General
    Colors Team Yamaha Blue, Gray
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2007
    Manufacturer Yamaha
    Model Raptor 80
    Style Sport
    MSRP* $2,599.00
    Chassis
    Front Suspension Leading arm
    Front Travel 2.3 in. travel
    Front Brake Type Dual sealed drum
    Front Tires AT18 x 7-7
    Rear Suspension Swing arm
    Rear Travel 2.2 in. travel
    Rear Brake Type Sealed drum
    Rear Tires AT18 x 8-7
    Frame
    Dimensions/Capacities
    Dry Weight 242 lbs. (110 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 1.8 gal. (6.8 l)
    Ground Clearance 4.0 in. (100 mm)
    Machine Dimensions (LxWxH) 59.8” (1,519 mm) x 32.5" (826 mm) x 37.8" (960 mm)
    Wheelbase 40.6 in. (1,030 mm)
    Drive Train
    Drive Train 2WD; Shaft
    Final Drive
    Transmission 3-Speed automatic clutch
    Engine
    Engine Type SOHC 4-stroke single
    Displacement 79 cc
    Bore x Stroke 47mm x 45.6mm
    Cylinders 1
    Engine Cooling Air-cooled
    Fuel System Mikuni 16mm
    Starting System Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Team Yamaha Blue, Gray
    Warranty 6 Month (Limited Factory Warranty)
