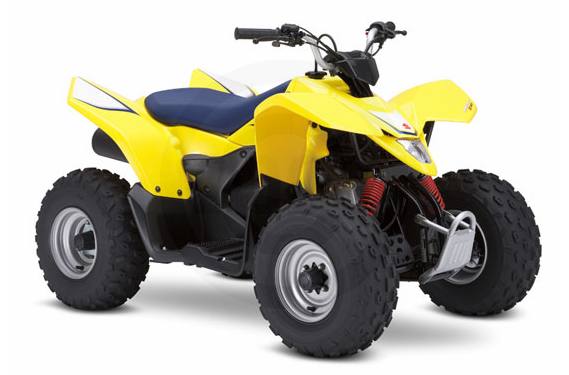

2008 Suzuki QuadSport® Z90

2008 LTZ90

Now until December 31, 2010
$100.00 Off Store Price
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Experience the exhilarating 2008 QuadSport® Z90. The QuadSport Z90 is designed for adult-supervised riders age 12 and older, and includes many safety features, such as simple screw-type throttle limiter which allows parents to control maximum speed that make learning to ride a safe and fun experience. Value, aggressive R450-like styling, ease of use and reliability, these are traits of the QuadSport Z90.

    Key Features
    • QuadSport Z90 is designed for adult-supervised riders age 12 and older - includes many features that make learning to ride a safe and fun experience
    Engine Features
    • 90cc 4-stroke youth ATV that combines modern sport styling inspired by the QuadRacer R450 and a quiet, smooth-running engine
    • Electric starting system plus standard recoil starter
    • Compact 89.8cc 4-stroke, single-cylinder, air-cooled engine designed for durability and low maintenance
    • Smooth running CVT automatic transmission provides easy operation and allows the rider to focus on riding instead of shifting
    • Simple screw-type throttle limiter allows parents to control maximum speed
    • Large 6.0 liter fuel tank for long operating range combined with vacuum fuel petcock for low maintenance
    Chassis Features
    • Modern styling with full floorboards and a big Quad look, plus bright yellow or white paint and graphics
    • Child-size (Y-6) controls for easy operation
    • Strong, high-rigidity steel frame
    • Single A-arm front suspension with twin independent shock absorbers, and single-shock rear suspension provide long wheel travel for a comfortable ride
    • Large diameter semi-sealed front drum brakes and single fully sealed rear drum brake provide strong braking performance
    • One-piece 7-inch wheels with tubeless tires provide a smooth comfortable ride
    • Easy-to-remove seat for simplified maintenance
    • Suzuki T-shaped seat similar to the LT-R450 for smooth weight transition and a comfortable ride
    • Headlamp style front piece is detachable to achieve the race machine look of the LT-R450
    Specifications
    • Engine: 89.8cc, 4-stroke, single cylinder, air-cooled
    • Bore Stroke: 45.5 x 55.2mm
    • Compression Ratio: 9.2:1
    • Fuel System: MikuniT VM17
    • Lubrication: Wet Sump
    • Ignition: CDI
    • Transmission: V-belt, automatic
    • Final Drive: Chain
    • Overall Length: 1515mm (59.6 in.)
    • Overall Width: 855mm (33.7 in.)
    • Overall Height: 865mm (34.1 in.)
    • Seat Height: 645mm (25.4 in.)
    • Ground Clearance: 150mm (5.9 in.)
    • Wheelbase: 1030mm (40.6 in.)
    • Dry Weight: 115 kg (254 lbs.)
    • Suspension Front: Independent Single A-arm, oil-damped, coil spring
    • Suspension Rear: Swing arm, oil-damped, coil spring
    • Brakes Front: Mechanical drum
    • Brakes Rear: Mechanical drum
    • Tires Front: AT 19 x 7-8
    • Tires Rear: AT 19 x 7-8
    • Fuel Tank Capacity: 6.0 liter (1.6 gal.)
    • Color: Yellow, White
    NOTES:

    Minimum Age: 12 Years Old.


    Specifications and features are subject to change.


    Specifications

    Engine
    Engine Type 4-Stroke
    Displacement 89.8 cc
    Bore x Stroke 45.5 x 55.2 mm
    Cylinders Single
    Engine Cooling Air-cooled
    Fuel System MikuniT VM16
    Starting System Ignition: CDI; Electric starting system plus standard recoil starter
    Chassis
    Front Suspension Independent single A-arm, oil-damped, coil spring
    Front Brake Type Mechanical drum
    Front Tires AT 19 x 7-8
    Rear Suspension Swing arm, oil-damped, coil spring
    Rear Brake Type Mechanical drum
    Rear Tires AT 19 x 7-8
    Frame Strong, high-rigidity steel frame
    Dimensions/Capacities
    Dry Weight 254 lbs (115 kg)
    Fuel Capacity 1.6 gal (6.0 l)
    Ground Clearance 5.9 in. (150 mm)
    Machine Dimensions (LxWxH) 59.6 x 33.7 x 34.1 in. (1515 x 855 x 865 mm)
    Wheelbase 40.6 in. (1030 mm)
    Drive Train
    Final Drive Chain
    Transmission V-belt, automatic
    General
    Colors Yellow, White
    Warranty 6 month limited warranty

    Compare Models

    		 Print








    Year 2008
    Manufacturer Suzuki
    Model QuadSport® Z90
    Style Sport
    MSRP* $2,499.00
    Chassis
    Front Suspension Independent single A-arm, oil-damped, coil spring
    Front Travel
    Front Brake Type Mechanical drum
    Front Tires AT 19 x 7-8
    Rear Suspension Swing arm, oil-damped, coil spring
    Rear Travel
    Rear Brake Type Mechanical drum
    Rear Tires AT 19 x 7-8
    Frame Strong, high-rigidity steel frame
    Dimensions/Capacities
    Dry Weight 254 lbs (115 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 1.6 gal (6.0 l)
    Ground Clearance 5.9 in. (150 mm)
    Machine Dimensions (LxWxH) 59.6 x 33.7 x 34.1 in. (1515 x 855 x 865 mm)
    Wheelbase 40.6 in. (1030 mm)
    Drive Train
    Drive Train
    Final Drive Chain
    Transmission V-belt, automatic
    Engine
    Engine Type 4-Stroke
    Displacement 89.8 cc
    Bore x Stroke 45.5 x 55.2 mm
    Cylinders Single
    Engine Cooling Air-cooled
    Fuel System MikuniT VM16
    Starting System Ignition: CDI; Electric starting system plus standard recoil starter
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Yellow, White
    Warranty 6 month limited warranty
