$6,399.00

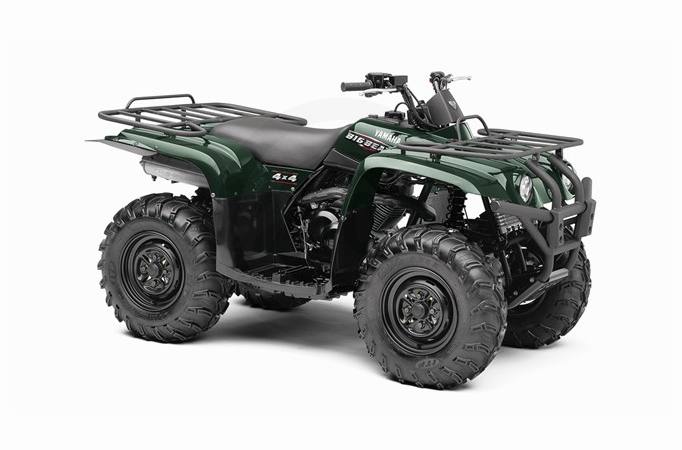

2009 Yamaha Big Bear 400 IRS 4x4
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • Potent, 386cc air-/oil-cooled, SOHC four-stroke single delivers reliable, class-leading low-end and midrange power to tackle the hardest chores and toughest trails.
    • Independent rear suspension offers excellent terrainability and all-day comfort.
    • Class-exclusive, pushbutton On-Command® with Diff Lock makes switching from 2WD to 4WD to 4WD Diff Lock a snap.
    • Constant-mesh five-speed transmission with automatic clutch, reverse and super-low stump-pulling first gear means this is one hard-working ATV.
    • Sealed wet brake out back provides long-lasting, consistent stopping power in even the harshest conditions.
    • Full floorboards and high ground clearance keep the rider high and as dry as possible.
    • Number-one-selling aftermarket ITP® Mud Lite tires make the Big Bear 400 an excellent mud machine.
    • Pushbutton electric starting in any gear is backed up by an auxiliary recoil starter.
    Engine Features
    • Simple yet powerful 386cc air-/oil-cooled, SOHC engine inhales through a heated, semi-oval slide 33mm BSR Mikuni® carburetor for seamless throttle response and excellent all-weather performance.
    • DC-CDI ignition system ensures dependable starting and puts out consistent spark at all rpm for optimal engine performance.
    • Large-capacity oil cooler with cooling fan helps maximize engine efficiency, even under heavy loads.
    • Stainless steel muffler and header provide superior power characteristics, exhaust sound and unmatched durability.
    • Easy-access, tool-free air filter box.
    • Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
    Chassis/Suspension Features
    • Special compact frame design uses fewer components to reduce weight and provide lighter steering, a tighter turning radius and superior durability.
    • Class-leading turning radius provides maximum maneuverability on tight trails and while working with heavy equipment.
    • Independent rear suspension makes this one super-comfortable, while it makes even more terrain accessible.
    • High-tech sealed wet brake provides consistent, long-lasting braking performance in hostile environments.
    • On-Command® drive selection with Diff Lock lets you access full power from 4WD locked.
    • Low seat height for great handling.
    • Plenty of ground clearance means superb terrainability.
    • Independent double-wishbone front suspension with five-way preload-adjustable shocks and 5.8 inches of travel.
    • Large-diameter ventilated hydraulic front disc brakes and a sealed rear wet brake provide plenty of stopping power in a variety of conditions.
    • Reliable, low-maintenance front and rear shaft drive.
    • Huge 25x8-12 front and 25x10-12 rear ITP® Mud Lite tires further boost ground clearance while providing great handling and traction.
    • Specially designed A-arms with removable ball joints provide smooth operation and outstanding reliability.
    • Built-in winch mounts.
    Additional Features
    • Wrinkle-finish cargo racks are super-durable and can pack a class-leading total of 264 pounds (88 front, 176 rear) of payload.
    • Speedometer with odometer/tripmeter adds greater versatility and allows rider to keep track of engine maintenance intervals.
    • Standard center-mounted trailer hitch can hook up more than 900 pounds of payload.
    • Full floorboards, lots of ground clearance and a high-mount air intake are ready for mud.
    • Flat-style handlebars help lighten steering effort and deliver greater rider comfort.
    • Large front and rear fenders with inner splash guards offer excellent mud and splash protection.
    • Large-capacity, 4-gallon fuel tank has a built-in gauge.
    • Water-resistant, large-capacity underseat storage box provides added convenience.
    • Heavy-duty, full-coverage A-arm and CV joint boot protectors help prevent damage to boot covers.
    • Specially designed, thickly padded seat is widely contoured for incomparable rider comfort.
    • Mud-/water-resistant automotive-type DC power outlet powers a wide range of accessories.
    • Rugged, serrated footrests provide excellent grip and rider comfort with superb durability.
    • Maintenance-free 18-amp-hour battery provides extra starting power.
    • Underseat marine-spec electrical components ensure maximum protection from the elements and easy access.
    • Bright multi-reflector 30-watt headlights feature wide positioning to maximize low-light and nighttime visibility.
    • Easy-to-use, handlebar-mounted parking brake and choke lever.
    • Built in Newnan, GA, USA.
    Engine Specifications
    • Type: 386cc, 4-stroke, air-/oil-cooled single; SOHC
    • Bore x Stroke: 83.0mm x 71.5mm
    • Compression Ratio: 8.6:1
    • Carburetion: Mikuni® 33mm BSR
    • Ignition: DC-CDI
    • Starting System: Electric w/auxiliary pull
    • Transmission: 5-speed w/reverse; automatic clutch; front- and rear-wheel engine braking
    • Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 5.8-in travel
    • Suspension/Rear: Independent double wishbone; 5-way preload adjustment, 7.6-in travel
    • Brakes/Front: Dual hydraulic discs
    • Brakes/Rear: Sealed wet brake
    • Tires/Front: AT25x8-12 ITP Mud Lite
    • Tires/Rear: AT25x10-12 ITP Mud Lite
    Dimensions
    • L x W x H: 79.4 x 43.9 x 46.7 in
    • Seat Height: 35.2 in
    • Wheelbase: 48.4 in
    • Turning Radius: 126 in
    • Ground Clearance: 10.5 in
    • Fuel Capacity: 4.0 gal
    • Dry Weight: 593 lb
    • Rack Capacity: 88 lb Fr./176 lb Rr.
    • Towing Capacity: 904 lb
    Other
    • Instrumentation: Speedometer, odometer & fuel gauge
    • Lighting: Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)
    • Colors: Black Metalic, Hunter Green, Steel Blue, Realtree® AP HD® Camouflage

    Specifications

    Engine
    Engine Type 4-stroke, air-/oil-cooled single; SOHC
    Displacement 386 cc
    Bore x Stroke 83.0 x 71.5 mm
    Cylinders Single
    Engine Cooling Air-/oil-cooled
    Fuel System Mikuni® 33 mm BSR
    Starting System Electric w/auxiliary pull
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 5.8 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12 ITP Mud Lite
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Travel 7.6 in.
    Rear Brake Type Sealed wet brake
    Rear Tires AT25x10-12 ITP Mud Lite
    Dimensions/Capacities
    Dry Weight 593 lbs
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 904 lbs
    Fuel Capacity 4.0 gal
    Ground Clearance 10.5 in.
    Machine Dimensions (LxWxH) 79.4 x 43.9 x 46.7 in.
    Wheelbase 48.4 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Transmission 5-speed w/reverse; automatic clutch; front- and rear-wheel engine braking
    General
    Speedometer Standard
    Odometer Standard
    Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    Colors Black Metalic, Hunter Green, Steel Blue, Realtree® AP HD® Camouflage
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model Big Bear 400 IRS 4x4
    Style Utility
    MSRP* $6,099.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 5.8 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12 ITP Mud Lite
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Travel 7.6 in.
    Rear Brake Type Sealed wet brake
    Rear Tires AT25x10-12 ITP Mud Lite
    Frame
    Dimensions/Capacities
    Dry Weight 593 lbs
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 904 lbs
    Fuel Capacity 4.0 gal
    Ground Clearance 10.5 in.
    Machine Dimensions (LxWxH) 79.4 x 43.9 x 46.7 in.
    Wheelbase 48.4 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Final Drive
    Transmission 5-speed w/reverse; automatic clutch; front- and rear-wheel engine braking
    Engine
    Engine Type 4-stroke, air-/oil-cooled single; SOHC
    Displacement 386 cc
    Bore x Stroke 83.0 x 71.5 mm
    Cylinders Single
    Engine Cooling Air-/oil-cooled
    Fuel System Mikuni® 33 mm BSR
    Starting System Electric w/auxiliary pull
    Alternator
    General
    Speedometer Standard
    Tachometer
    Odometer Standard
    Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    Colors Black Metalic, Hunter Green, Steel Blue, Realtree® AP HD® Camouflage
    Warranty 6 Month (Limited Factory Warranty)
