Showcase Product Detail

New Units » Yamaha » Grizzly 125 Automatic
Model Quick Search

$3,599.00
$3,199.00
$400.00

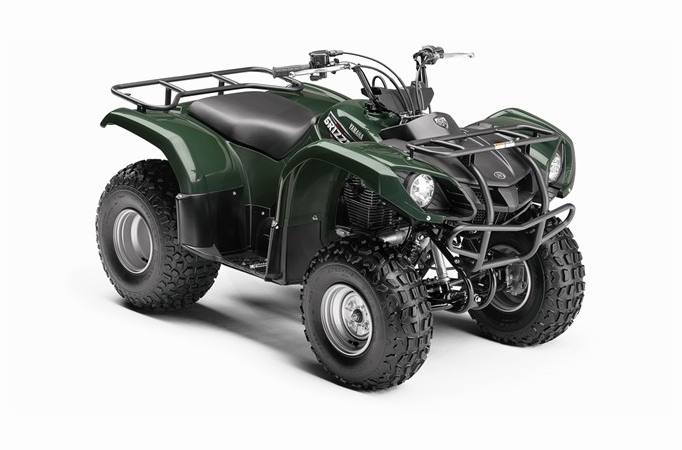

2009 Yamaha Grizzly 125 Automatic

2009 GRIZ 125

Now until December 31, 2010
$200.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • Grizzly styling provides industry-leading good looks and durability, and a big Grizzly-style seat provides maximum rider comfort.
    • Fully automatic V-belt transmission with forward, neutral and reverse is simple to operate and eliminates the need for shifting.
    • Tough, powerful 124cc SOHC, four-stroke single cranks out plenty of smooth, broadband propulsion.
    • Rugged midsize steel frame ?ts a wide range of riders.
    • Rugged steel cargo racks can pack a total of 33 pounds of combined cargo—11 pounds up front and 22 on the rear.
    • Simple-to-use, handlebar-mounted parking brake and choke lever for added convenience.
    • Wide front and rear fenders with integrated full ?oorboards provide mud and splash protection for a dry, comfortable ride.
    Engine Features
    • Powerful 124cc air-cooled four-stroke single delivers reliable, smooth engine performance for all riders.
    • Simple-to-operate selector knob lets you effortlessly select forward, neutral or reverse.
    • Adjustable throttle limiter lets adult supervisor add power gradually as beginning riders over 16 years gain experience.
    • Reliable, pushbutton electric start in any gear adds extra convenience and dependability.
    • Rugged muffler with USFS-approved spark arrestor for quiet operation.
    • Automatic cam chain tensioner reduces engine maintenance and extends engine life.
    Chassis/Suspension Features
    • Independent A-arm front suspension with 2.8 inches of travel delivers a smooth, plush ride and responsive steering.
    • Rugged swingarm packing a single rear shock with 3.2 inches of travel smoothes out the bumps for a comfortable ride.
    • Class-leading low, 27-inch seat height enhances rider comfort and allows for great handling.
    • 5.7-inch ground clearance allows smooth riding in a wide variety of terrain.
    • Fully sealed front and rear drum brakes provide strong, reliable stopping power.
    • Rugged 20x7-8 front and 22x10-8 rear knobby tires offer excellent traction and boost ground clearance.
    Additional Features
    • Dual 30-watt multi-reflector Krypton headlights, set back in the front cowl, add the perfect menacing appearance.
    • Taillight has an incorporated brake light.
    • Large, 2-gallon fuel tank provides excellent range.
    Engine Specifications
    • Type: 124cc, 4-stroke, air-cooled single; SOHC
    • Bore x Stroke: 49.0mm x 66.0mm
    • Compression Ratio: 9.0:1
    • Carburetion: Mikuni® 18mm
    • Ignition: DC - CDI
    • Starting System: Electric
    • Transmission: V-belt automatic/F, N, R
    • Drive Train: 2WD; O-ring chain
    Chassis Specifications
    • Suspension/Front: Independent wishbone, 2.8-in travel
    • Suspension/Rear: Swingarm, 3.2-in travel
    • Brakes/Front: Dual sealed drum
    • Brakes/Rear: Sealed drum
    • Tires/Front: AT20x7-8
    • Tires/Rear: AT22x10-8
    Dimensions
    • L x W x H: 66.9 x 39.0 x 38.6 in
    • Seat Height: 27.0 in
    • Wheelbase: 42.5 in
    • Turning Radius: 114 in
    • Ground Clearance: 5.7 in
    • Fuel Capacity: 2.0 gal
    • Dry Weight: 306 lb
    • Rack Capacity: 11 lb Fr./ 22 lb Rr.
    Other
    • Lighting: Dual 30W Krypton multi-reflector headlights; 21W/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)
    • Colors: Black Metalic, Hunter Green, Steel Blue

    Specifications

    Engine
    Engine Type 4-stroke, air-cooled single; SOHC
    Displacement 124 cc
    Bore x Stroke 49.0 x 66.0 mm
    Cylinders Single
    Engine Cooling Air
    Fuel System Mikuni® 18 mm
    Starting System Electric
    Chassis
    Front Suspension Independent wishbone
    Front Travel 2.8 in.
    Front Brake Type Dual sealed drum
    Front Tires AT20x7-8
    Rear Suspension Swingarm
    Rear Travel 3.2 in.
    Rear Brake Type Sealed drum
    Rear Tires AT22x10-8
    Dimensions/Capacities
    Dry Weight 306 lbs
    Front Rack Capacity 11 lbs
    Rear Rack Capacity 22 lbs
    Fuel Capacity 2.0 gal
    Ground Clearance 5.7 in.
    Machine Dimensions (LxWxH) 66.9 x 39.0 x 38.6 in.
    Wheelbase 42.5 in.
    Drive Train
    Drive Train 2WD; O-ring chain
    Transmission V-belt automatic/F, N, R
    General
    Lighting Dual 30W Krypton multi-reflector headlights; 21W/5W brakelight
    Colors Black Metalic, Hunter Green, Steel Blue
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model Grizzly 125 Automatic
    Style Utility
    MSRP* $3,399.00
    Chassis
    Front Suspension Independent wishbone
    Front Travel 2.8 in.
    Front Brake Type Dual sealed drum
    Front Tires AT20x7-8
    Rear Suspension Swingarm
    Rear Travel 3.2 in.
    Rear Brake Type Sealed drum
    Rear Tires AT22x10-8
    Frame
    Dimensions/Capacities
    Dry Weight 306 lbs
    Front Rack Capacity 11 lbs
    Rear Rack Capacity 22 lbs
    Towing Capacity
    Fuel Capacity 2.0 gal
    Ground Clearance 5.7 in.
    Machine Dimensions (LxWxH) 66.9 x 39.0 x 38.6 in.
    Wheelbase 42.5 in.
    Drive Train
    Drive Train 2WD; O-ring chain
    Final Drive
    Transmission V-belt automatic/F, N, R
    Engine
    Engine Type 4-stroke, air-cooled single; SOHC
    Displacement 124 cc
    Bore x Stroke 49.0 x 66.0 mm
    Cylinders Single
    Engine Cooling Air
    Fuel System Mikuni® 18 mm
    Starting System Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30W Krypton multi-reflector headlights; 21W/5W brakelight
    Colors Black Metalic, Hunter Green, Steel Blue
    Warranty 6 Month (Limited Factory Warranty)

    Current Promotions

    There are currently no promotions available for this product.
